Plate tectonics

Plate tectonics (from the Late Latin: tectonicus, from the Ancient Greek: τεκτονικός, lit. 'pertaining to building') is the generally accepted scientific theory that considers the Earth's lithosphere to comprise a number of large tectonic plates which have been slowly moving since about 3.4 billion years ago. The model builds on the concept of continental drift, an idea developed during the first decades of the 20th century. Plate tectonics came to be generally accepted by geoscientists after seafloor spreading was validated in the mid to late 1960s.

Earth's lithosphere, which is the rigid outermost shell of the planet (the crust and upper mantle), is broken into seven or eight major plates (depending on how they are defined) and many minor plates or "platelets". Where the plates meet, their relative motion determines the type of plate boundary: convergent, divergent, or transform. Earthquakes, volcanic activity, mountain-building, and oceanic trench formation occur along these plate boundaries (or faults). The relative movement of the plates typically ranges from zero to 10 cm annually.

Tectonic plates are composed of the oceanic lithosphere and the thicker continental lithosphere, each topped by its own kind of crust. Along convergent boundaries, the process of subduction, or one plate moving under another, carries the edge of the lower one down into the mantle; the area of material lost is balanced by the formation of new (oceanic) crust along divergent margins by seafloor spreading. In this way, the total geoid surface area of the lithosphere remains constant. This prediction of plate tectonics is also referred to as the conveyor belt principle. Earlier theories, since disproven, proposed gradual shrinking (contraction) or gradual expansion of the globe.

Tectonic plates are able to move because Earth's lithosphere has greater mechanical strength than the underlying asthenosphere. Lateral density variations in the mantle result in convection; that is, the slow creeping motion of Earth's solid mantle. Plate movement is thought to be driven by a combination of the motion of the seafloor away from spreading ridges due to variations in topography (the ridge is a topographic high) and density changes in the crust (density increases as newly-formed crust cools and moves away from the ridge). At subduction zones the relatively cold, dense oceanic crust sinks down into the mantle over the downward convecting limb of a mantle cell. The relative importance of each of these factors and their relationship to each other is unclear, and still the subject of much debate.

Key principles

The outer layers of Earth are divided into the lithosphere and asthenosphere. The division is based on differences in mechanical properties and in the method for the transfer of heat. The lithosphere is cooler and more rigid, while the asthenosphere is hotter and flows more easily. In terms of heat transfer, the lithosphere loses heat by conduction, whereas the asthenosphere also transfers heat by convection and has a nearly adiabatic temperature gradient. This division should not be confused with the chemical subdivision of these same layers into the mantle (comprising both the asthenosphere and the mantle portion of the lithosphere) and the crust: a given piece of mantle may be part of the lithosphere or the asthenosphere at different times depending on its temperature and pressure.

The key principle of plate tectonics is that the lithosphere exists as separate and distinct tectonic plates, which ride on the fluid-like (visco-elastic solid) asthenosphere. Plate motions range up to a typical 10-40 mm/year (Mid-Atlantic Ridge; about as fast as fingernails grow), to about 160 mm/year (Nazca Plate; about as fast as hair grows). The driving mechanism behind this movement is described below.

Tectonic lithosphere plates consist of lithospheric mantle overlain by one or two types of crustal material: oceanic crust (in older texts called sima from silicon and magnesium) and continental crust (sial from silicon and aluminium). Average oceanic lithosphere is typically 100 km (62 mi) thick; its thickness is a function of its age: as time passes, it conductively cools and subjacent cooling mantle is added to its base. Because it is formed at mid-ocean ridges and spreads outwards, its thickness is therefore a function of its distance from the mid-ocean ridge where it was formed. For a typical distance that oceanic lithosphere must travel before being subducted, the thickness varies from about 6 km (4 mi) thick at mid-ocean ridges to greater than 100 km (62 mi) at subduction zones; for shorter or longer distances, the subduction zone (and therefore also the mean) thickness becomes smaller or larger, respectively.[8] Continental lithosphere is typically about 200 km thick, though this varies considerably between basins, mountain ranges, and stable cratonic interiors of continents.

The location where two plates meet is called a plate boundary. Plate boundaries are commonly associated with geological events such as earthquakes and the creation of topographic features such as mountains, volcanoes, mid-ocean ridges, and oceanic trenches. The majority of the world's active volcanoes occur along plate boundaries, with the Pacific Plate's Ring of Fire being the most active and widely known today. These boundaries are discussed in further detail below. Some volcanoes occur in the interiors of plates, and these have been variously attributed to internal plate deformation[9] and to mantle plumes.

As explained above, tectonic plates may include continental crust or oceanic crust, and most plates contain both. For example, the African Plate includes the continent and parts of the floor of the Atlantic and Indian Oceans. The distinction between oceanic crust and continental crust is based on their modes of formation. Oceanic crust is formed at sea-floor spreading centers, and continental crust is formed through arc volcanism and accretion of terranes through tectonic processes, though some of these terranes may contain ophiolite sequences, which are pieces of oceanic crust considered to be part of the continent when they exit the standard cycle of formation and spreading centers and subduction beneath continents. Oceanic crust is also denser than continental crust owing to their different compositions. Oceanic crust is denser because it has less silicon and more heavier elements ("mafic") than continental crust ("felsic"). As a result of this density stratification, oceanic crust generally lies below sea level (for example most of the Pacific Plate), while continental crust buoyantly projects above sea level (see the page isostasy for explanation of this principle).

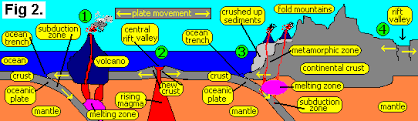

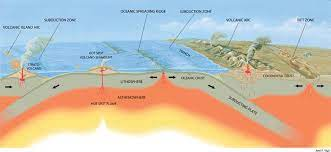

Types of plate boundaries

Three types of plate boundaries exist, with a fourth, mixed type, characterized by the way the plates move relative to each other. They are associated with different types of surface phenomena. The different types of plate boundaries are :

• Divergent boundaries (constructive boundaries or extensional boundaries) occur where two plates slide apart from each other. At zones of ocean-to-ocean rifting, divergent boundaries form by seafloor spreading, allowing for the formation of new ocean basin. As the ocean plate splits, the ridge forms at the spreading center, the ocean basin expands, and finally, the plate area increases causing many small volcanoes and/or shallow earthquakes. At zones of continent-to-continent rifting, divergent boundaries may cause new ocean basin to form as the continent splits, spreads, the central rift collapses, and ocean fills the basin. Active zones of mid-ocean ridges (e.g., the Mid-Atlantic Ridge and East Pacific Rise), and continent-to-continent rifting (such as Africa's East African Rift and Valley and the Red Sea), are examples of divergent boundaries.

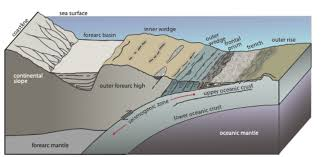

• Convergent boundaries (destructive boundaries or active margins) occur where two plates slide toward each other to form either a subduction zone (one plate moving underneath the other) or a continental collision. At zones of ocean-to-continent subduction (e.g. the Andes mountain range in South America, and the Cascade Mountains in Western United States), the dense oceanic lithosphere plunges beneath the less dense continent. Earthquakes trace the path of the downward-moving plate as it descends into asthenosphere, a trench forms, and as the subducted plate is heated it releases volatiles, mostly water from hydrous minerals, into the surrounding mantle. The addition of water lowers the melting point of the mantle material above the subducting slab, causing it to melt. The magma that results typically leads to volcanism. At zones of ocean-to-ocean subduction (e.g. the Aleutian Islands, the Mariana Islands, and the Japanese island arc), older, cooler, denser crust slips beneath less dense crust. This motion causes earthquakes and a deep trench to form in an arc shape. The upper mantle of the subducted plate then heats and magma rises to form curving chains of volcanic islands. Deep marine trenches are typically associated with subduction zones, and the basins that develop along the active boundary are often called "foreland basins". Closure of ocean basins can occur at continent-to-continent boundaries (e.g., Himalayas and Alps): collision between masses of granitic continental lithosphere; neither mass is subducted; plate edges are compressed, folded, uplifted.

• Transform boundaries (conservative boundaries or strike-slip boundaries) occur where two lithospheric plates slide, or perhaps more accurately, grind past each other along transform faults, where plates are neither created nor destroyed. The relative motion of the two plates is either sinistral (left side toward the observer) or dextral (right side toward the observer). Transform faults occur across a spreading center. Strong earthquakes can occur along a fault. The San Andreas Fault in California is an example of a transform boundary exhibiting dextral motion.

• Other plate boundary zones occur where the effects of the interactions are unclear, and the boundaries, usually occurring along a broad belt, are not well defined and may show various types of movements in different episodes.

Driving forces of plate motion

It has generally been accepted that tectonic plates are able to move because of the relative density of oceanic lithosphere and the relative weakness of the asthenosphere. Dissipation of heat from the mantle is acknowledged to be the original source of the energy required to drive plate tectonics through convection or large scale upwelling and doming. The current view, though still a matter of some debate, asserts that as a consequence, a powerful source generating plate motion is the excess density of the oceanic lithosphere sinking in subduction zones. When the new crust forms at mid-ocean ridges, this oceanic lithosphere is initially less dense than the underlying asthenosphere, but it becomes denser with age as it conductively cools and thickens. The greater density of old lithosphere relative to the underlying asthenosphere allows it to sink into the deep mantle at subduction zones, providing most of the driving force for plate movement. The weakness of the asthenosphere allows the tectonic plates to move easily towards a subduction zone. Although subduction is thought to be the strongest force driving plate motions, it cannot be the only force since there are plates such as the North American Plate which are moving, yet are nowhere being subducted. The same is true for the enormous Eurasian Plate. The sources of plate motion are a matter of intensive research and discussion among scientists. One of the main points is that the kinematic pattern of the movement itself should be separated clearly from the possible geodynamic mechanism that is invoked as the driving force of the observed movement, as some patterns may be explained by more than one mechanism. In short, the driving forces advocated at the moment can be divided into three categories based on the relationship to the movement: mantle dynamics related, gravity related (main driving force accepted nowadays), and earth rotation related.

Driving forces related to mantle dynamics

For much of the last quarter century, the leading theory of the driving force behind tectonic plate motions envisaged large scale convection currents in the upper mantle, which can be transmitted through the asthenosphere. This theory was launched by Arthur Holmes and some forerunners in the 1930s and was immediately recognized as the solution for the acceptance of the theory as originally discussed in the papers of Alfred Wegener in the early years of the century. However, despite its acceptance, it was long debated in the scientific community because the leading theory still envisaged a static Earth without moving continents up until the major breakthroughs of the early sixties.

Two- and three-dimensional imaging of Earth's interior (seismic tomography) shows a varying lateral density distribution throughout the mantle. Such density variations can be material (from rock chemistry), mineral (from variations in mineral structures), or thermal (through thermal expansion and contraction from heat energy). The manifestation of this varying lateral density is mantle convection from buoyancy forces.

How mantle convection directly and indirectly relates to plate motion is a matter of ongoing study and discussion in geodynamics. Somehow, this energy must be transferred to the lithosphere for tectonic plates to move. There are essentially two main types of forces that are thought to influence plate motion: friction and gravity.

• Basal drag (friction): Plate motion driven by friction between the convection currents in the asthenosphere and the more rigid overlying lithosphere.
• Slab pull (gravity): Plate motion driven by local convection currents that exert a downward pull on plates in subduction zones at ocean trenches. Slab pull may occur in a geodynamic setting where basal tractions continue to act on the plate as it dives into the mantle (although perhaps to a greater extent acting on both the under and upper side of the slab).

Lately, the convection theory has been much debated, as modern techniques based on 3D seismic tomography still fail to recognize these predicted large scale convection cells. Alternative views have been proposed.

Plume tectonics

In the theory of plume tectonics followed by numerous researchers during the 1990s, a modified concept of mantle convection currents is used. It asserts that super plumes rise from the deeper mantle and are the drivers or substitutes of the major convection cells. These ideas find their roots in the early 1930s in the works of Beloussov and van Bemmelen, which were initially opposed to plate tectonics and placed the mechanism in a fixistic frame of verticalistic movements. Van Bemmelen later on modulated on the concept in his "Undulation Models" and used it as the driving force for horizontal movements, invoking gravitational forces away from the regional crustal doming.

The theories find resonance in the modern theories which envisage hot spots or mantle plumes which remain fixed and are overridden by oceanic and continental lithosphere plates over time and leave their traces in the geological record (though these phenomena are not invoked as real driving mechanisms, but rather as modulators).

The mechanism is still advocated to explain the break-up of supercontinents during specific geological epochs.[22] It has followers amongst the scientists involved in the theory of Earth expansion.

Surge tectonics

Another theory is that the mantle flows neither in cells nor large plumes but rather as a series of channels just below Earth's crust, which then provide basal friction to the lithosphere. This theory, called "surge tectonics", was popularized during the 1980s and 1990s. Recent research, based on three-dimensional computer modeling, suggests that plate geometry is governed by a feedback between mantle convection patterns and the strength of the lithosphere.

Driving forces related to gravity

Forces related to gravity are invoked as secondary phenomena within the framework of a more general driving mechanism such as the various forms of mantle dynamics described above. In modern views, gravity is invoked as the major driving force, through slab pull along subduction zones.

Gravitational sliding away from a spreading ridge is one of the proposed driving forces, it proposes plate motion is driven by the higher elevation of plates at ocean ridges. As oceanic lithosphere is formed at spreading ridges from hot mantle material, it gradually cools and thickens with age (and thus adds distance from the ridge). Cool oceanic lithosphere is significantly denser than the hot mantle material from which it is derived and so with increasing thickness it gradually subsides into the mantle to compensate the greater load. The result is a slight lateral incline with increased distance from the ridge axis.

This force is regarded as a secondary force and is often referred to as "ridge push". This is a misnomer as there is no force "pushing" horizontally, indeed tensional features are dominant along ridges. It is more accurate to refer to this mechanism as "gravitational sliding", since the topography across the whole plate can vary considerably and spreading ridges are only the most prominent feature. Other mechanisms generating this gravitational secondary force include flexural bulging of the lithosphere before it dives underneath an adjacent plate, producing a clear topographical feature that can offset, or at least affect, the influence of topographical ocean ridges. Mantle plumes and hot spots are also postulated to impinge on the underside of tectonic plates.

Slab pull: Current scientific opinion is that the asthenosphere is insufficiently competent or rigid to directly cause motion by friction along the base of the lithosphere. Slab pull is therefore most widely thought to be the greatest force acting on the plates. In this current understanding, plate motion is mostly driven by the weight of cold, dense plates sinking into the mantle at trenches. Recent models indicate that trench suction plays an important role as well. However, the fact that the North American Plate is nowhere being subducted, although it is in motion, presents a problem. The same holds for the African, Eurasian, and Antarctic plates.

Gravitational sliding away from mantle doming: According to older theories, one of the driving mechanisms of the plates is the existence of large scale asthenosphere/mantle domes which cause the gravitational sliding of lithosphere plates away from them (see the paragraph on Mantle Mechanisms). This gravitational sliding represents a secondary phenomenon of this basically vertically oriented mechanism. It finds its roots in the Undation Model of van Bemmelen. This can act on various scales, from the small scale of one island arc up to the larger scale of an entire ocean basin.

Driving forces related to Earth rotation

Alfred Wegener, being a meteorologist, had proposed tidal forces and centrifugal forces as the main driving mechanisms behind continental drift; however, these forces were considered far too small to cause continental motion as the concept was of continents plowing through oceanic crust. Therefore, Wegener later changed his position and asserted that convection currents are the main driving force of plate tectonics in the last edition of his book in 1929.

However, in the plate tectonics context (accepted since the seafloor spreading proposals of Heezen, Hess, Dietz, Morley, Vine, and Matthews (see below) during the early 1960s), the oceanic crust is suggested to be in motion with the continents which caused the proposals related to Earth rotation to be reconsidered. In more recent literature, these driving forces are :

• Tidal drag due to the gravitational force the Moon (and the Sun) exerts on the crust of Earth
• Global deformation of the geoid due to small displacements of the rotational pole with respect to Earth's crust
• Other smaller deformation effects of the crust due to wobbles and spin movements of Earth's rotation on a smaller timescale

Forces that are small and generally negligible are :

• The Coriolis force
• The centrifugal force, which is treated as a slight modification of gravity

For these mechanisms to be overall valid, systematic relationships should exist all over the globe between the orientation and kinematics of deformation and the geographical latitudinal and longitudinal grid of Earth itself. These systematic relations studies in the second half of the nineteenth century and the first half of the twentieth century underline exactly the opposite: that the plates had not moved in time, that the deformation grid was fixed with respect to Earth's equator and axis, and that gravitational driving forces were generally acting vertically and caused only local horizontal movements (the so-called pre-plate tectonic, "fixist theories"). Later studies (discussed below on this page), therefore, invoked many of the relationships recognized during this pre-plate tectonics period to support their theories (see the anticipations and reviews in the work of van Dijk and collaborators).

Possible tidal effect on plate tectonics

Of the many forces discussed above, tidal force is still highly debated and defended as a possible principal driving force of plate tectonics. The other forces are only used in global geodynamic models not using plate tectonics concepts (therefore beyond the discussions treated in this section) or proposed as minor modulations within the overall plate tectonics model. In 1973, George W. Moore of the USGS and R. C. Bostrom presented evidence for a general westward drift of Earth's lithosphere with respect to the mantle. He concluded that tidal forces (the tidal lag or "friction") caused by Earth's rotation and the forces acting upon it by the Moon are a driving force for plate tectonics. As Earth spins eastward beneath the Moon, the Moon's gravity ever so slightly pulls Earth's surface layer back westward, just as proposed by Alfred Wegener (see above). In a more recent 2006 study, scientists reviewed and advocated these earlier proposed ideas. It has also been suggested recently in Lovett (2006) that this observation may also explain why Venus and Mars have no plate tectonics, as Venus has no moon and Mars' moons are too small to have significant tidal effects on the planet. In a recent paper, it was suggested that, on the other hand, it can easily be observed that many plates are moving north and eastward, and that the dominantly westward motion of the Pacific Ocean basins derives simply from the eastward bias of the Pacific spreading center (which is not a predicted manifestation of such lunar forces). In the same paper the authors admit, however, that relative to the lower mantle, there is a slight westward component in the motions of all the plates. They demonstrated though that the westward drift, seen only for the past 30 Ma, is attributed to the increased dominance of the steadily growing and accelerating Pacific plate. The debate is still open.

Relative significance of each driving force mechanism

The vector of a plate's motion is a function of all the forces acting on the plate; however, therein lies the problem regarding the degree to which each process contributes to the overall motion of each tectonic plate.

The diversity of geodynamic settings and the properties of each plate result from the impact of the various processes actively driving each individual plate. One method of dealing with this problem is to consider the relative rate at which each plate is moving as well as the evidence related to the significance of each process to the overall driving force on the plate.

One of the most significant correlations discovered to date is that lithospheric plates attached to downgoing (subducting) plates move much faster than other types of plates. The Pacific plate, for instance, is essentially surrounded by zones of subduction (the so-called Ring of Fire) and moves much faster than the plates of the Atlantic basin, which are attached (perhaps one could say 'welded') to adjacent continents instead of subducting plates. It is thus thought that forces associated with the downgoing plate (slab pull and slab suction) are the driving forces which determine the motion of plates, except for those plates which are not being subducted. This view however has been contradicted by a recent study which found that the actual motions of the Pacific Plate and other plates associated with the East Pacific Rise do not correlate mainly with either slab pull or slab push, but rather with a mantle convection upwelling whose horizontal spreading along the bases of the various plates drives them along via viscosity-related traction forces. The driving forces of plate motion continue to be active subjects of on-going research within geophysics and tectonophysics.
