Pillow lava



Pillow lavas are lavas that contain characteristic pillow-shaped structures that are attributed to the extrusion of the lava underwater, or subaqueous extrusion. Pillow lavas in volcanic rock are characterized by thick sequences of discontinuous pillow-shaped masses, commonly up to one meter in diameter. They form the upper part of Layer 2 of normal oceanic crust.

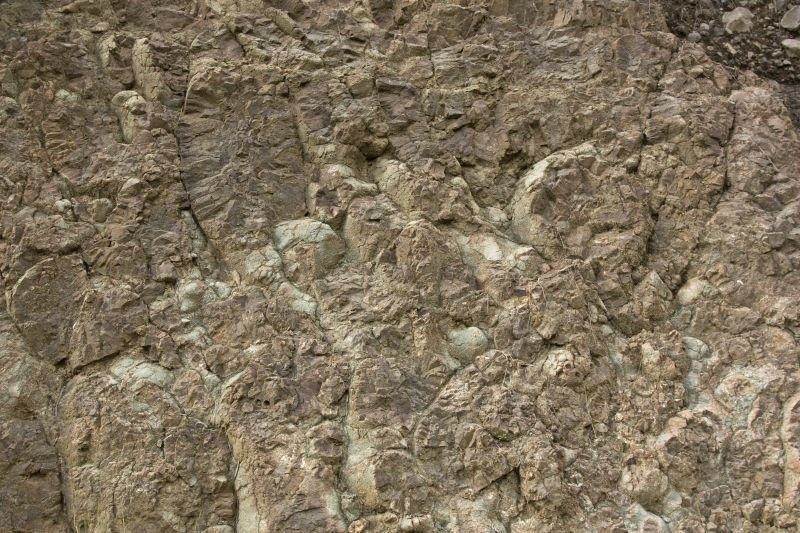

Pillow lava near Fasoula. Troodos Ophiolite Complex, Cyprus.

Pillow lavas are commonly of basaltic composition, although pillows formed of komatiite, picrite, boninite, basaltic andesite, andesite, dacite or even rhyolite are known. In general, the more felsic the composition (richer in silica - resulting in an Intermediate composition), the larger the pillows, due to the increase in viscosity of the erupting lava.

Pillow lava in the Mathiatis open-pit mine. Troodos Ophiolite Complex, Cyprus.

Occurrence

They occur wherever lava is extruded underwater, such as along marine hotspot volcano chains and the constructive plate boundaries of mid-ocean ridges. As new oceanic crust is formed, thick sequences of pillow lavas are erupted at the spreading center fed by dykes from the underlying magma chamber. Pillow lavas and the related sheeted dyke complexes form part of a classic ophiolite sequence (when a segment of oceanic crust is thrust over the continental crust, thus exposing the oceanic segment above sea level).

Pillow lava in the Mathiatis open-pit mine, Cyprus. Note radial cracks which are characteristic to pillow lavas and help them to be distinguished from spheroidal weathering which may create very similarly shaped rocks. These cracks are a result of cooling and are radial because they are perpendicular to the cooling front.

The presence of pillow lavas in the oldest preserved volcanic sequences on the planet, the Isua and Barberton greenstone belts, confirms the presence of large bodies of water on the Earth's surface early in the Archean Eon. Pillow lavas are used generally to confirm subaqueous volcanism in metamorphic belts. Pillow lavas are also found associated with some subglacial volcanoes at an early stage of an eruption.

Pillow lava in the Caldera de Taburiente, La Palma, Canary Islands.

Formation

They are created when magma reaches the surface but, as there is a large difference in temperature between the lava and the water, the surface of the emergent tongue cools very quickly, forming a skin. The tongue continues to lengthen and inflate with more lava, forming a lobe, until the pressure of the magma becomes sufficient to rupture the skin and start the formation of a new eruption point nearer the vent. This process produces a series of interconnecting lobate shapes that are pillow-like in cross-section. The skin cools much faster than the inside of the pillow, so it is very fine-grained, with a glassy texture. The magma inside the pillow cools slowly, so it is slightly coarser-grained than the skin, but it is still classified as fine grained.

Pillow lava in Iceland. Note the convex upper and concave or flat lower surfaces.

Use as a way-up criterion

Pillow lavas can be used as a way-up indicator in geology;[9] that is, study of their shape reveals the attitude, or position, in which they were originally formed. Pillow lava shows it is still in its original orientation when:

1. Vesicles are found towards the top of a pillow (because the gas trapped as part of the rock is less dense than its solid surroundings).
2. The pillow structures show a convex (rounded) upper surface.
3. The pillows might have a tapered base downwards, as they may have molded themselves to any underlying pillows during their formation.

Pillow lava is usually basaltic or andesitic in composition and always associated with water. Pillows are about one meter across each or smaller and form when lava flows out of the Earth’s crust underwater. Each pillow is like a bag that has quickly chilled margin which is filled with molten material. Pillow lavas are usually associated with mid-ocean ridge volcanism. The upper part of the oceanic crust is composed of countless number of lava pillows, but they can also form in much shallower conditions, even in lakes or under glacial ice.

Some sources do not even mention pillow lava as a type of lava flow1. Possibly because lava flows are generally distinguished by their extreme elongation downslope. Pillow lava, however, is composed of many pillow-shaped outpourings, each one of them slightly elongated but not forming a continuous flow.

Pillows usually demonstrate a convex upper and concave or flat lower surface. The surfaces are glassy because of very rapid cooling in contact with water.
